B01:Pioneering High Resolution X-ray Imaging to Search for First Black Holes in the Universe

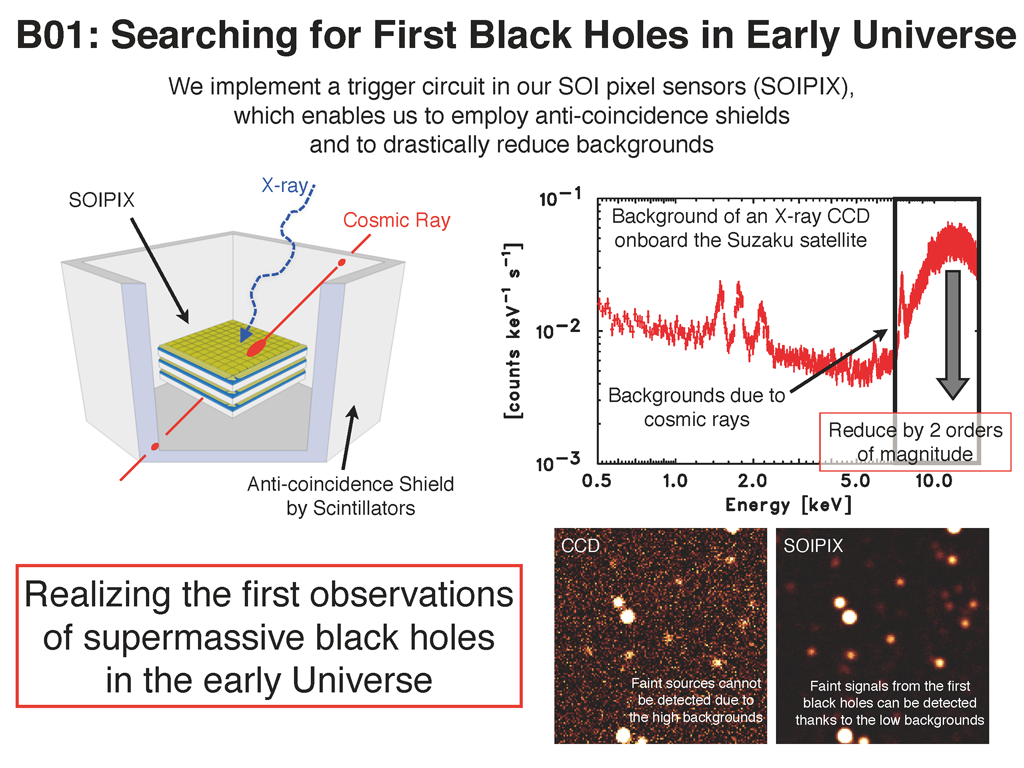

Our scientific goal is to search for the first population of supermassive black holes in the early Universe, and to reveal the history of cosmic structure formation. In order to achieve the goal, it is essential to realize high-resolution imaging-spectroscopy for faint sources located at high redshifts. We are developing SOI pixel sensors with event-driven readout function, with which we can drastically reduce backgrounds compared to currently used sensors. We aim to realize wide-band coverage by thick depletion layers and back illumination, superior energy resolution at the Fano limit, and wide field-of-view with fine pixel resolution. We will also plan to develop on-chip analog-to-digital converters to simplify the whole detector system.

  • Group Coordination Takeshi Go Tsuru
  • Evaluation of Sensitivity for Hard X-rays Koji Mori
  • Evaluation of Sensitivity for Soft X-rays Takayoshi Kohmura
  • Development of Event-Driven Readout Function Takaaki Tanaka
  • Cooperation in Development of Analog-to-Digital Converters Hiroshi Nakajima

member

PI Takeshi Go Tsuru Professor, Kyoto University High Energy Astrophysics Group coordination, Device development

Co-I Koji Mori Associate Professor, University of Miyazaki High Energy Astrophysics Evaluation of Sensitivity for Hard X-rays

Co-I Takayoshi Kohmura Associate Professor, Tokyo University of Science High Energy Astrophysics Evaluation of Sensitivity for Soft X-rays

Co-I Takaaki Tanaka Assistant Professor, Kyoto University High Energy Astrophysics Development of event-driven readout function, Estimation of background level in satellite orbits

Cooperating Researcher Hiroshi Nakajima Assistant Professor, Osaka University High Energy Astrophysics Cooperation in development and evaluation of on-chip analog-to-digital converters

Webpages to be linked Tsuru, Tanaka: http://www-cr.scphys.kyoto-u.ac.jp/index-e.html

Publication

  • Shinya Nakashima, Syukyo Gando Ryu, Takaaki Tanaka, Takeshi Go Tsuru, Ayaki Takeda, Yasuo Arai, Toshifumi Imamura, Takafumi Ohmoto, Atsushi Iwata, "Development and characterization of the latest X-ray SOI pixel sensor for a future astronomical mission", NIM A, in press
  • Koji Mori, Yusuke Nishioka, Satoshi Ohura, Yoshiaki Koura, Makoto Yamauchi, Hiroshi Nakajima, Shutaro Ueda, Hiroaki Kan, Naohisa Anabuki, Ryo Nagino, Kiyoshi Hayashida, Hiroshi Tsunemi, Takayoshi Kohmura, Shoma Ikeda, Hiroshi Murakami, Masanobu Ozaki, Tadayasu Dotani, Yukie Maeda, Kenshi Sagara, "Proton radiation damage experiment on P-Channel CCD for an X-ray CCD camera onboard the ASTRO-H satellite", NIM A, in press
  • Hiroshi Nakajima, Mari Fujikawa, Hideki Mori, Hiroaki Kan, Shutaro Ueda, Hiroko Kosugi, Naohisa Anabuki, Kiyoshi Hayashida, Hiroshi Tsunemi, John P. Doty, Hirokazu Ikeda, Hisashi Kitamura, Yukio Uchihori, "Single event effect characterization of the mixed-signal ASIC developed for CCD camera in space use", NIM A, in press
  • Ayaki Takeda, Yasuo Arai, Syukyo Gando Ryu, Shinya Nakashima, Takeshi Go Tsuru, Toshifumi Imamura, Takafumi Ohmoto, Atsushi Iwata, "A.Design and Evaluation of an SOI Pixel Sensor for Trigger-Driven X-Ray Readout", IEEE TNS, 60, pp. 586-591, 2013
  • Syukyo Gando Ryu, Takeshi Go Tsuru, Gregory Prigozhin, Steve Kissel, Marshall Bautz, Beverly LaMarr, Shinya Nakashima, Richard F. Foster, Ayaki Takeda, Yasuo Arai, Toshifumi Imamura, Takafumi Ohmoto, Atsushi Iwata, "Tests With Soft X-rays of an Improved Monolithic SOI Active Pixel Sensor", IEEE TNS, 60, pp. 465-469, 2013
  • Shinya Nakashima, Syukyo Gando Ryu, Takeshi Go Tsuru, Ayaki Takeda, Yasuo Arai, Toshinobu Miyoshi, Ryo Ichimiya, Yukiko Ikemoto,Toshifumi Imamura, Takafumi Ohmoto, Atsushi Iwata, "Progress in Development of Monolithic Active Pixel Detector for X-ray Astronomy with SOI CMOS Technology", Phys. Procedia, 37, pp. 1373-1380
  • Syukyo Gando Ryu, Takeshi Go Tsuru, Shinya Nakashima, Ayaki Takeda, Yasuo Arai, Toshinobu Miyoshi, Ryo Ichimiya, Yukiko Ikemoto, Hironori Matsumoto, Toshifumi Imamura, Takafumi Ohmoto, Atsushi Iwata, "First Performance Evaluation of an X-Ray SOI Pixel Sensor for Imaging Spectroscopy and Intra-Pixel Trigger", IEEE TNS, 58, pp. 2528-2536, 2011
