D02:Fast and high resolution mass imaging of biomolecules using stigmatic imaging mass spectrometer

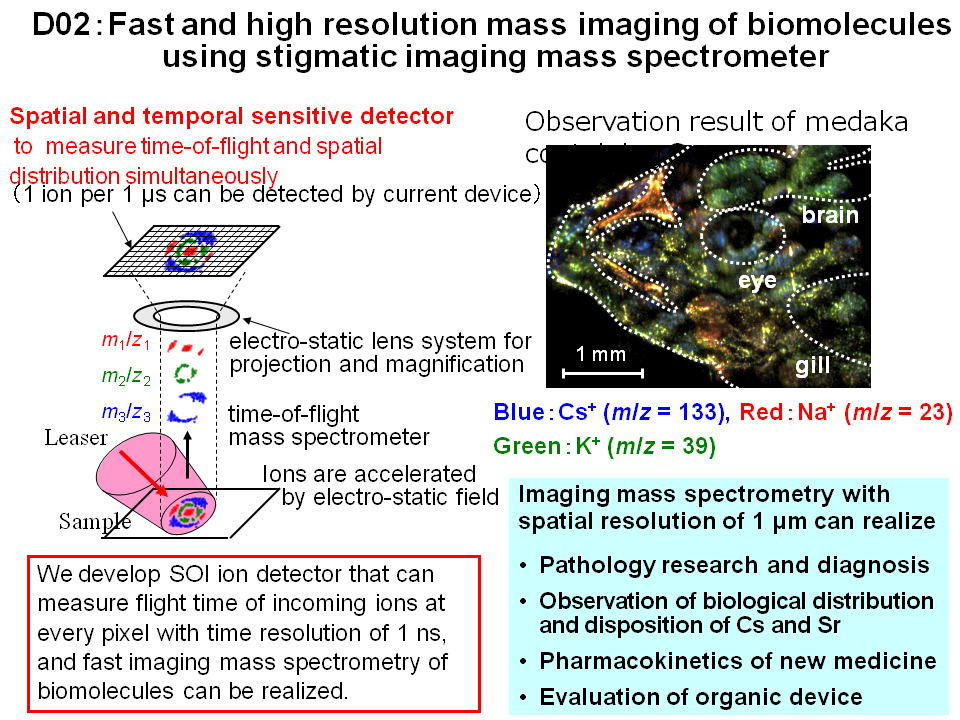

We will develop new SOI detector for stigmatic imaging mass spectrometer that can detect arrival position and flight time of incoming ion with high spatial and temporal resolution. By this new SOI detector stigmatic imaging mass spectrometer will be in practical use, and fast high resolution mass imaging of biomolecules can be realized.
This technique is expected to be applied in many fields (biology, pathology, pharmacy and industry) as below;

  • Pathology research and fast diagnosis
  • Observation of biological distribution and disposition of Cs and Sr
  • Pharmacokinetics of new medicine
  • Evaluation of organic electronic device

Member

Kunio Awazu Group Coordination

Hisanao Hazama  Development and design of SOI detector

Jun Aoki Development and design of optics for stigmatic-type imaging mass spectrometor

Michisato Toyoda  Development of stigmatic-type imaging mass spectrometor

Yosuke Kawai Development and evaluation SOI detector

Hisanori Matsuoka Development of control system for SOI detector
